Безопасность дорог и взлетно-посадочных полос

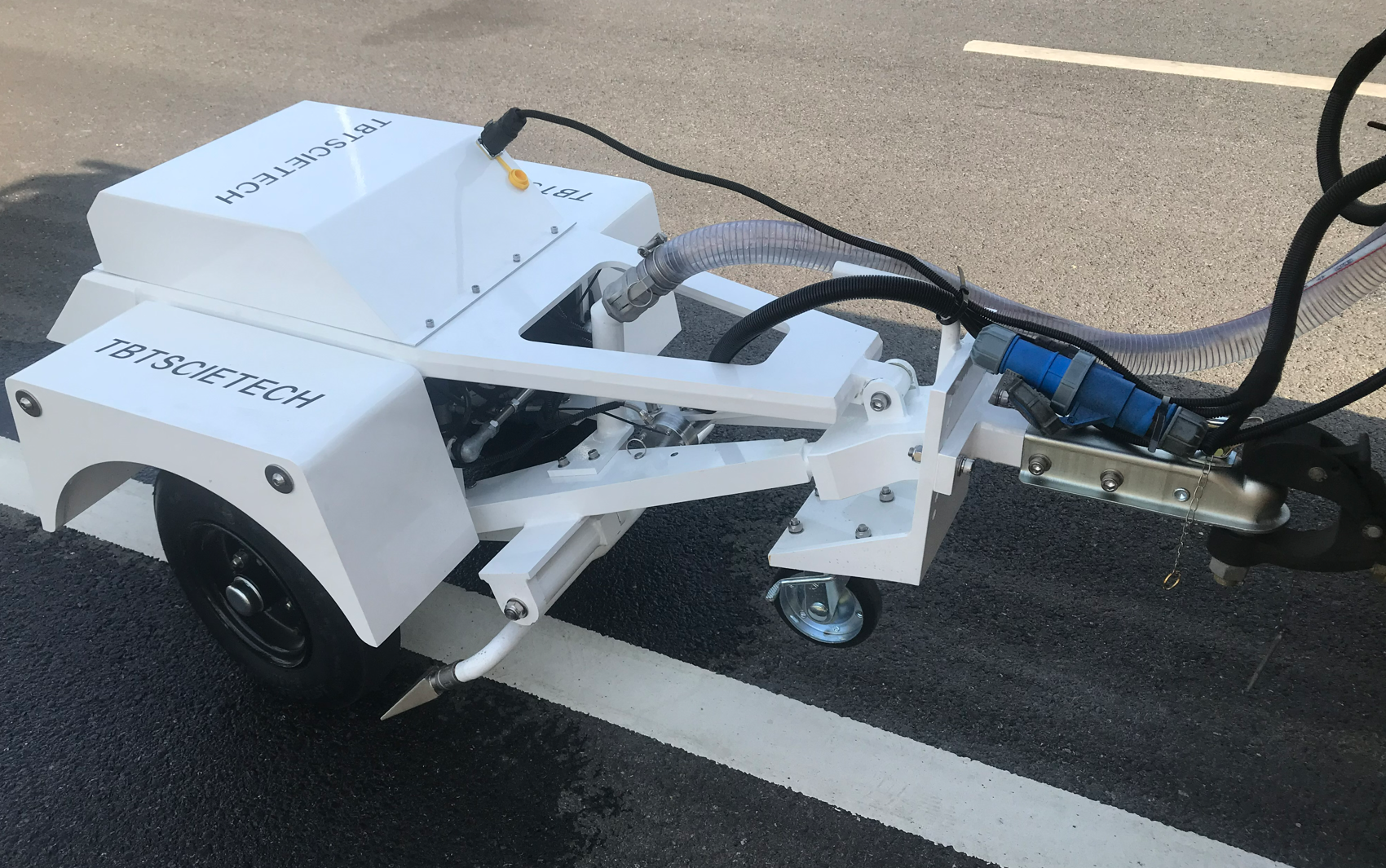

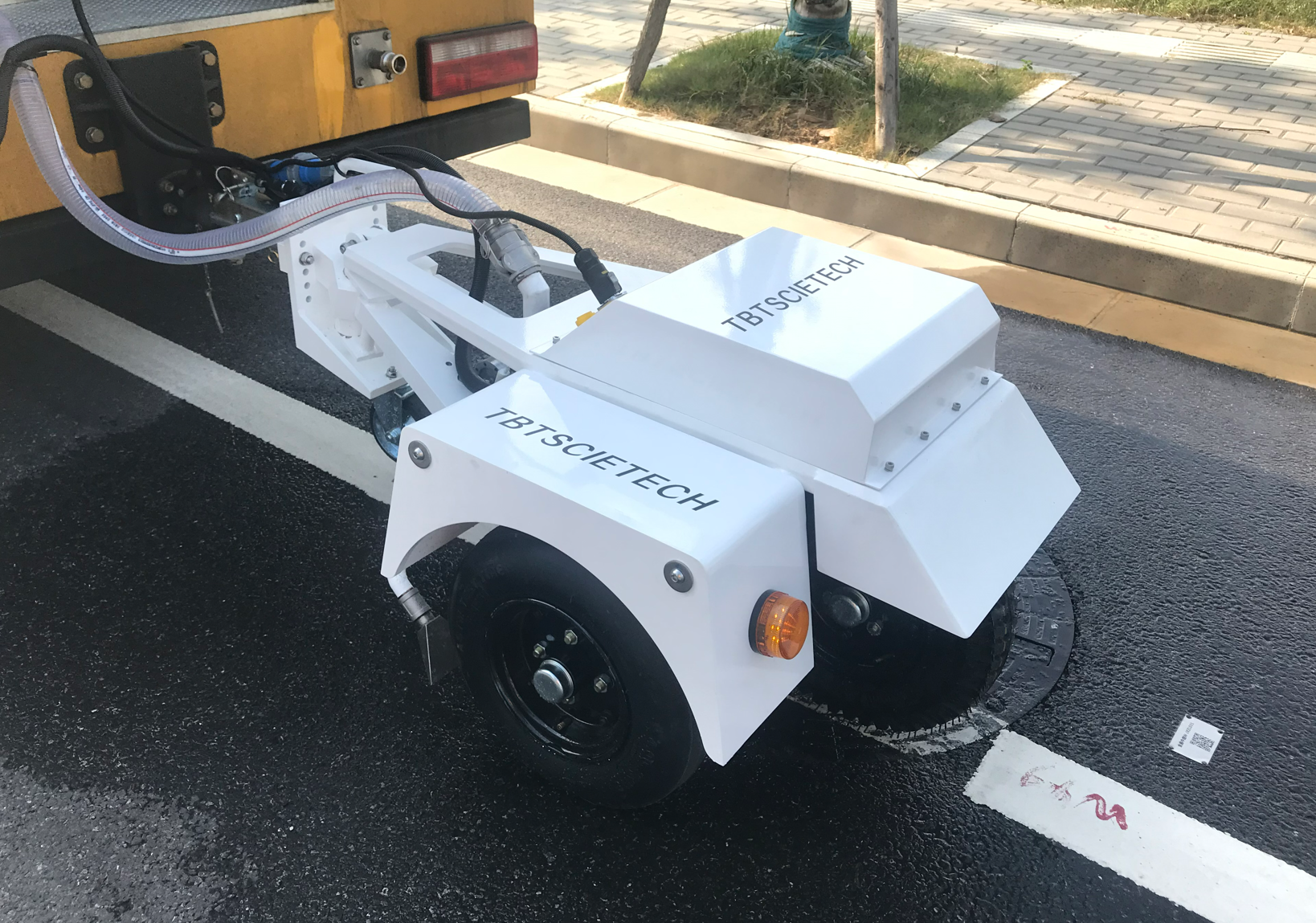

Прицепной измеритель коэффициента сцепления TBTCFT-1

Комплекс для непрерывного измерения сцепных свойств дорожных покрытий и аэродромных ВПП с самосмачиванием.

скорость испытаний до 100 км/чрежимы 65 и 96 км/ч для аэропортовдатчики нагрузки, расстояния и температуры
Прицепной измеритель коэффициента сцепления TBTCFT-1

Для каких задач

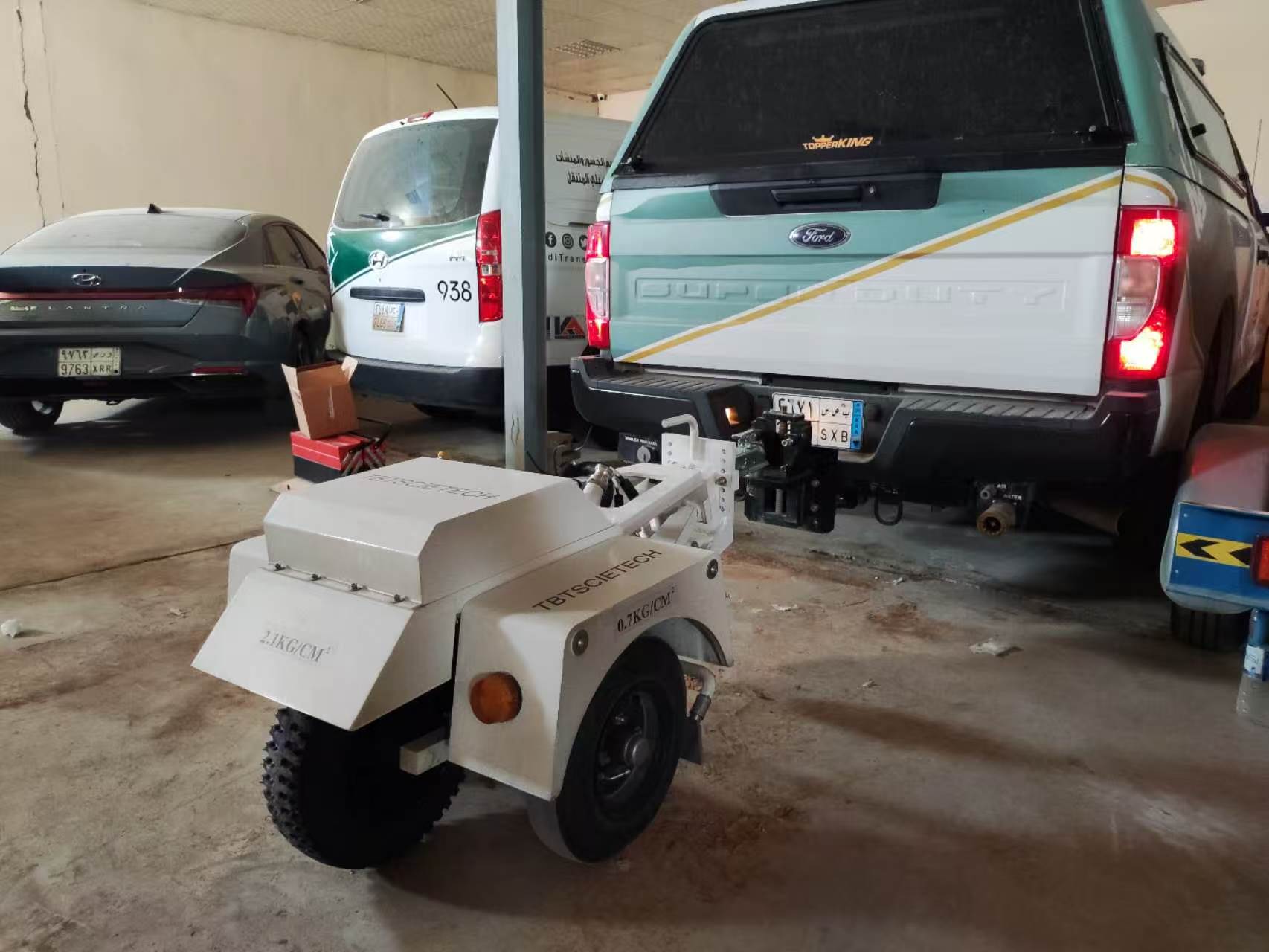

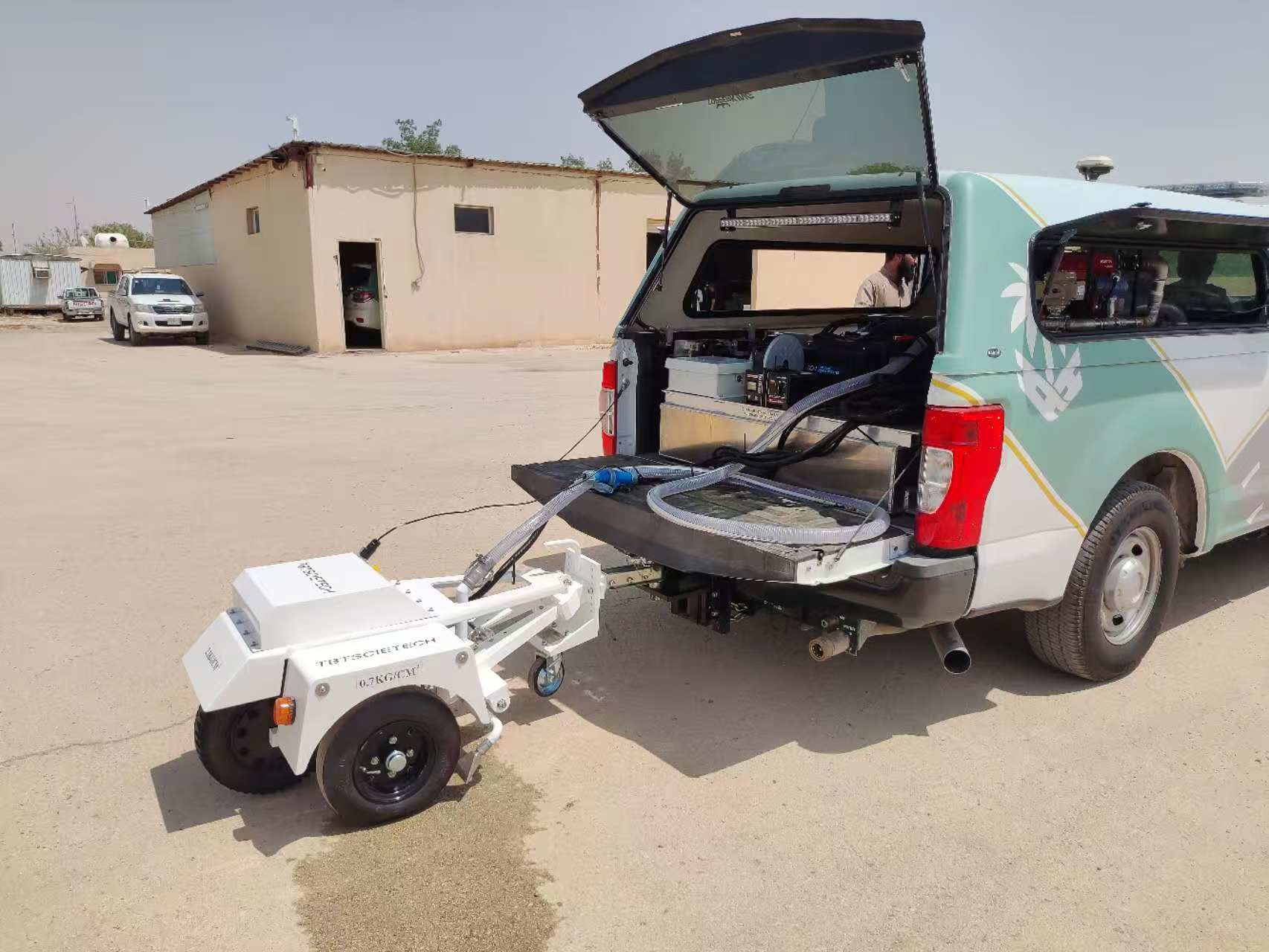

TBTCFT-1 is used to measure friction characteristics on road surfaces, airport runways under self-wetted condition, in order to ensure the pavement safety, especially for landing aircraft; TBTCFT-1 is trailer mounted type which connected with a water spray vehicle to perform the testing. Machine adopts transducer to measure the load and force, with DMI sensor to record the distance, with temperature sensor to record the pavement surface temperature.

Модель TBTCFT-1 подходит для аэропортов, дорожных служб и лабораторий эксплуатационного контроля, когда важны измеримые результаты, понятная отчетность и поставка с технической консультацией.

Преимущества

Характеристики

Trailer sizeL: 1553mm W: 960mm H: 570mm
Trailer connector height350 ±12mm
Trailer weightAround 254kg
(include weight, but without the support wheel)Weight distribute
Left wheel--at calibrated height position 77.5±1kgWeight distribute
Right wheel--at calibrated height position 77.5±1kgTesting wheel adjustment
Double wheel adjustment;Left/right Wheel 7.5° each wheel
Rear wheel53.5kg
Testing tyre(specially for friction coefficient test)
ASTM E1551Testing wheel for distance

Стандарты

ASTM E670, AASHTO T268, ASTM E1551

Перед поставкой можно уточнить требуемые методики испытаний, язык интерфейса, комплектацию датчиков и формат отчетов.
